SICUBE

RTIR Prsims for 0.3 Inch DMD DLP Projector

RTIR Prsims for 0.3 Inch DMD DLP Projector

Regular price $281.00
Regular price Sale price $281.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Light Source

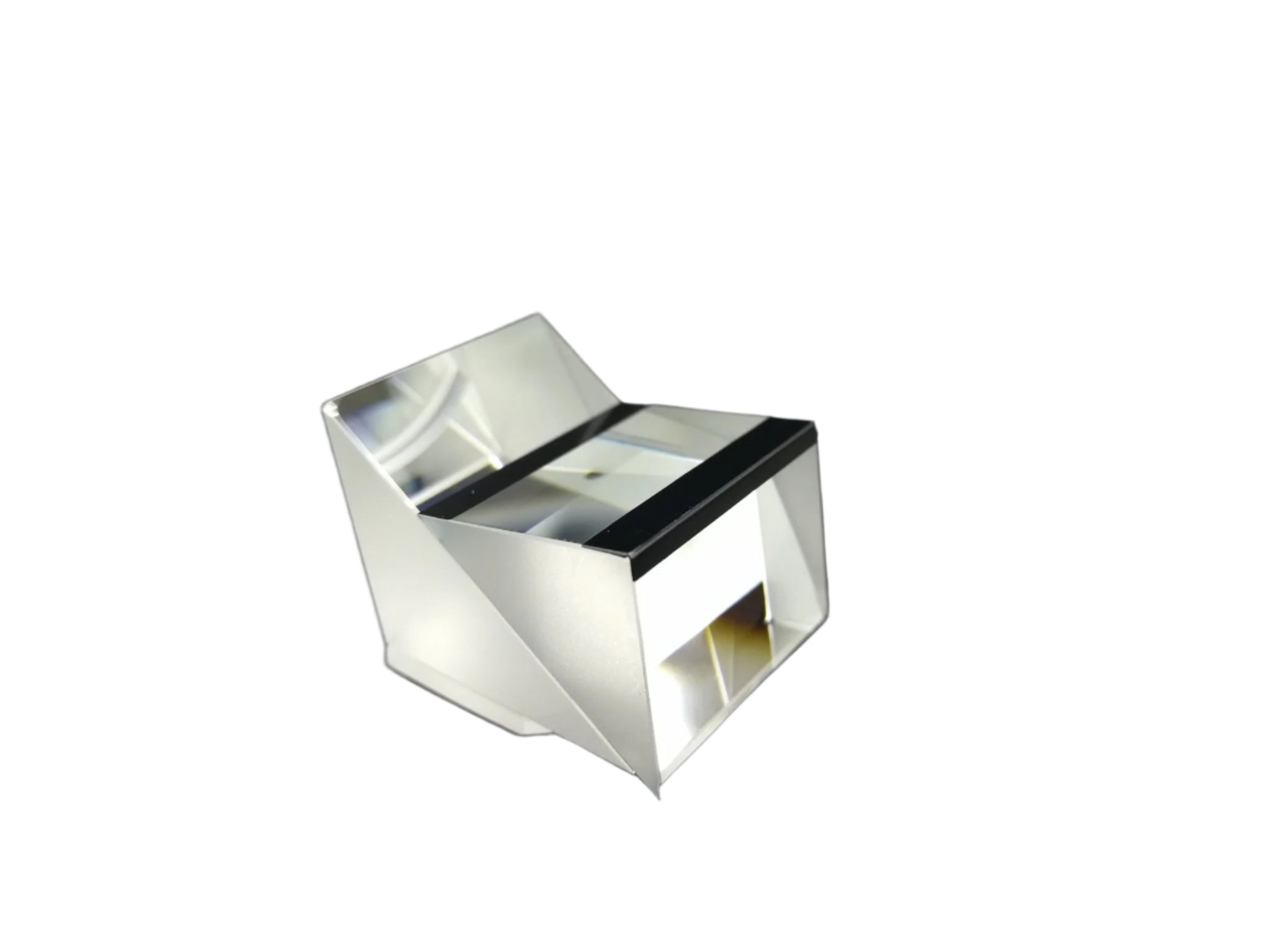

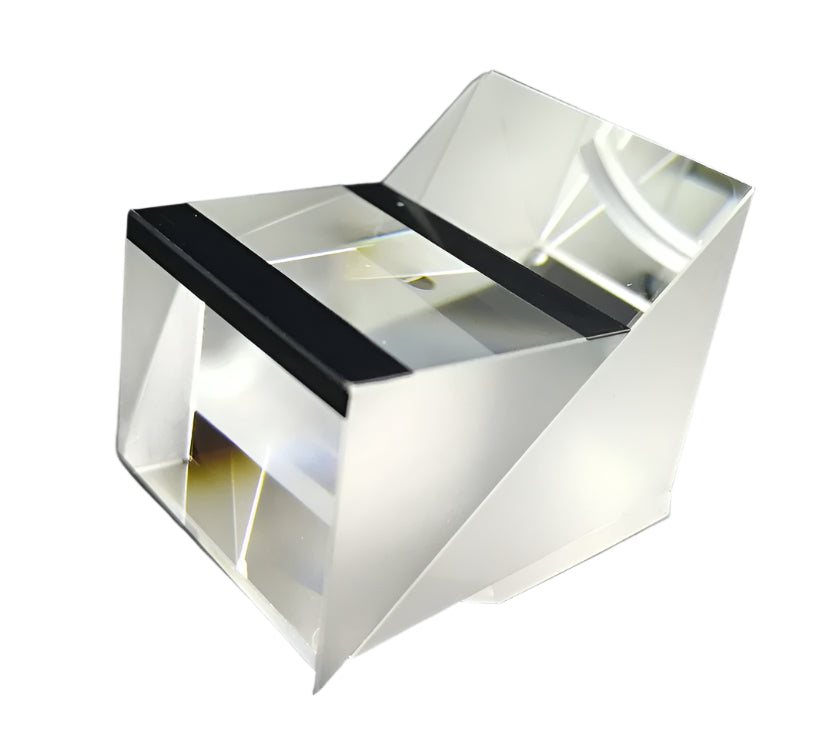

RTIR Prisms for 0.3 inch DMD DLP Projectors

General:

Total Internal Reflection Prism (TIR prism) is a combination of two laminated prisms. A TIR prism effectively directs the incident light to a DMD chip, then the expected image is projected by following the light beam reflected by the DMD chip. TIR/RTIR prisms are applied in DLP projection systems, and the light path is changed by using TIR to save the space in optical engines and enhance the contrast level of the system.

In an RTIR architecture, a reverse total internal reflection (RTIR) prism is used in a projection path between a spatial light modulator and the projection optics.

The best RTIR Prisms for 0.3 DMD DLP Projectors on the internet.

We at Sicube pride ourselves with being a professional manufacturer dedicated to high precision optics and photoelectric components. To guarantee you the quality you’re expecting from this high precision prism, we made sure to test each one of them under strict quality standards. A real value for your money, these RTIR prisms optimally save the space in optical engines and enhance the contrast level of the system.

  • Customizable RTIR Prisms: We understand your needs for these RTIR prisms. Expect us to deliver your custom RTIR Prisms in a timely manner, making us your number one choice for quality custom optics.
  • Premium Quality Optics: Expect nothing but the best optics and photoelectric products from us. We run a thorough checking and testing of each product to deliver only the distinct quality we’re known for.
  • Eco-Friendly Manufacturing Process: We care for the environment and we want to make a positive impact on the planet as we grow. Expect that these RTIR Prisms for DLP projectors are manufactured under the appropriate environmental protection standards.

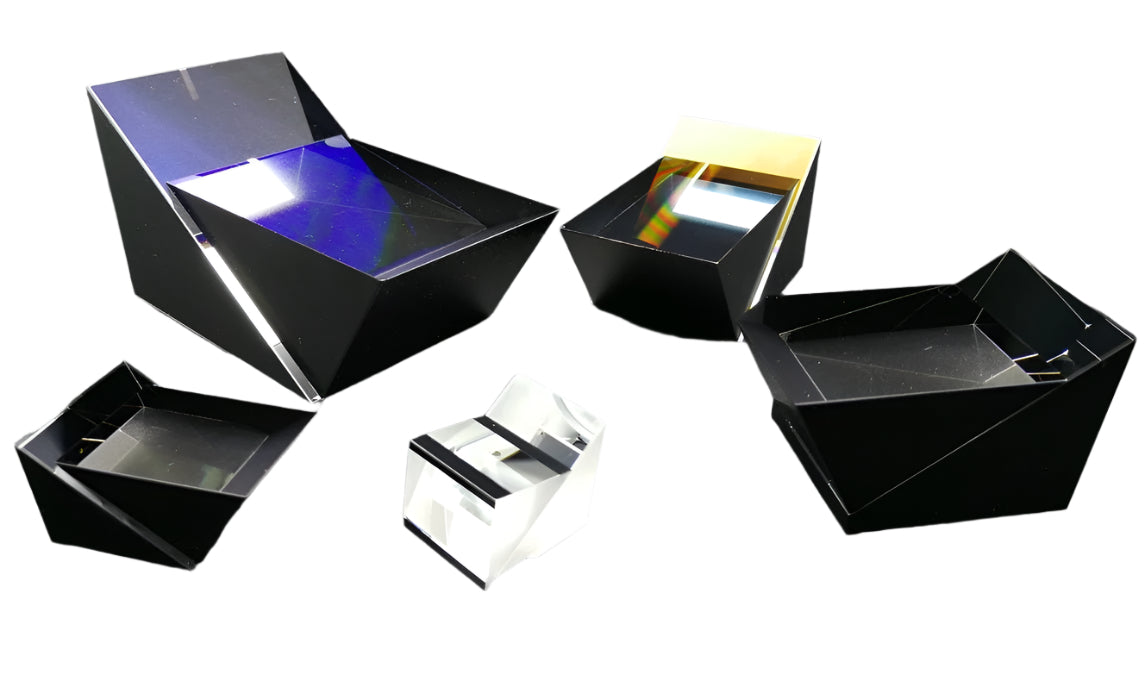

  • Wide variety: SICUBE's high precision prisms include TIR prisms, RTIR prisms for DLP light engines, PBS prisms, combination prisms, biometric prisms, AR prisms, and more.

More Details:

  • Full process machining and testing capability
  • Customized production, timely delivery
  • Processing capacity: angle accuracy: 5"; surface accuracy: within 1/10 λ; dimension accuracy: + 0.02mm
  • Green production, environmental protection
  • SICUBE can produce various sizes of TIR and RTIR prisms for DLP projection optical systems, suitable for 0.2, 0.3, 0.45, 0.47, 0.65, 0.95-inch DMD chips. In addition to providing conventional visible TIR/RTIR prisms, SICUBE provides both 365 nm-405 nm and 750 nm working band TIR prisms for 3D printing and sweeping requirements.
