SM12-LAS Laser 4K UV Projector for Industrial 3D Printing
SM12-LAS Professional High Power Laser Source 4K UV DLP Projector, High Resolution 4K UV LED Projector,Big Image size for UV Curing 4K Resin 3D Printing with Water Cooler
This high power Laser Source 4K UV projector for resin 3D printing with the SM12-LAS is dedicated for 4K UV curing 3D printing.
As 4K tech has become mainstream, it is now trickling into other markets where the benefits of high resolution is applicable. This includes 3D printing where DLP has the potential advantages in improving the detail of 3D printed objects.
SM12-LAS is a high-power laser source 4K UV projector that produces powerful and stable resin 4K DLP 3D printing. The SM12-LAS features high-tech laser technology and advanced optical performance, which enables users to achieve great definition and smooth surface finish in 4K resin 3D printing.
- Excellent Optical Performance: The SM12-LAS High Power 18w Laser 4K UV Projector offers excellent optical performance with high brightness, excellent resolution,big image size and a variety of other features to make your 4K 3D printing experience even better.
- Easy Installation: No need for lengthy instruction manuals just to tell you how to install the projector. The steps are super simple, you’ll have the machine up and running in minutes when HDMI connected.
- Best for scientific industrial work environment: The SM12-LAS is equipped with a high performance, high quality projector lens ,TIR prism,mirror and other optical components to ensure that the images projected are crisp and crystal clear.
Specs:
- High Resolution: 3840 x 2160 (XPR)
- DLP660TE UHD DMD
- Contrast: 1800:1
- Uniformty: >92%
- LED Wavelength: 405nm/385nm
- Light power: 18W(light-out)@405nm
- Video Interface: HDMI
- Configuration light engine system, including Laser, main board, thermal solution
- Water Cooler Temperature:18 degree
- Power :AC110V-240V,50/60HZ,DC24V-DIN4
- Control interface: USB/RS232

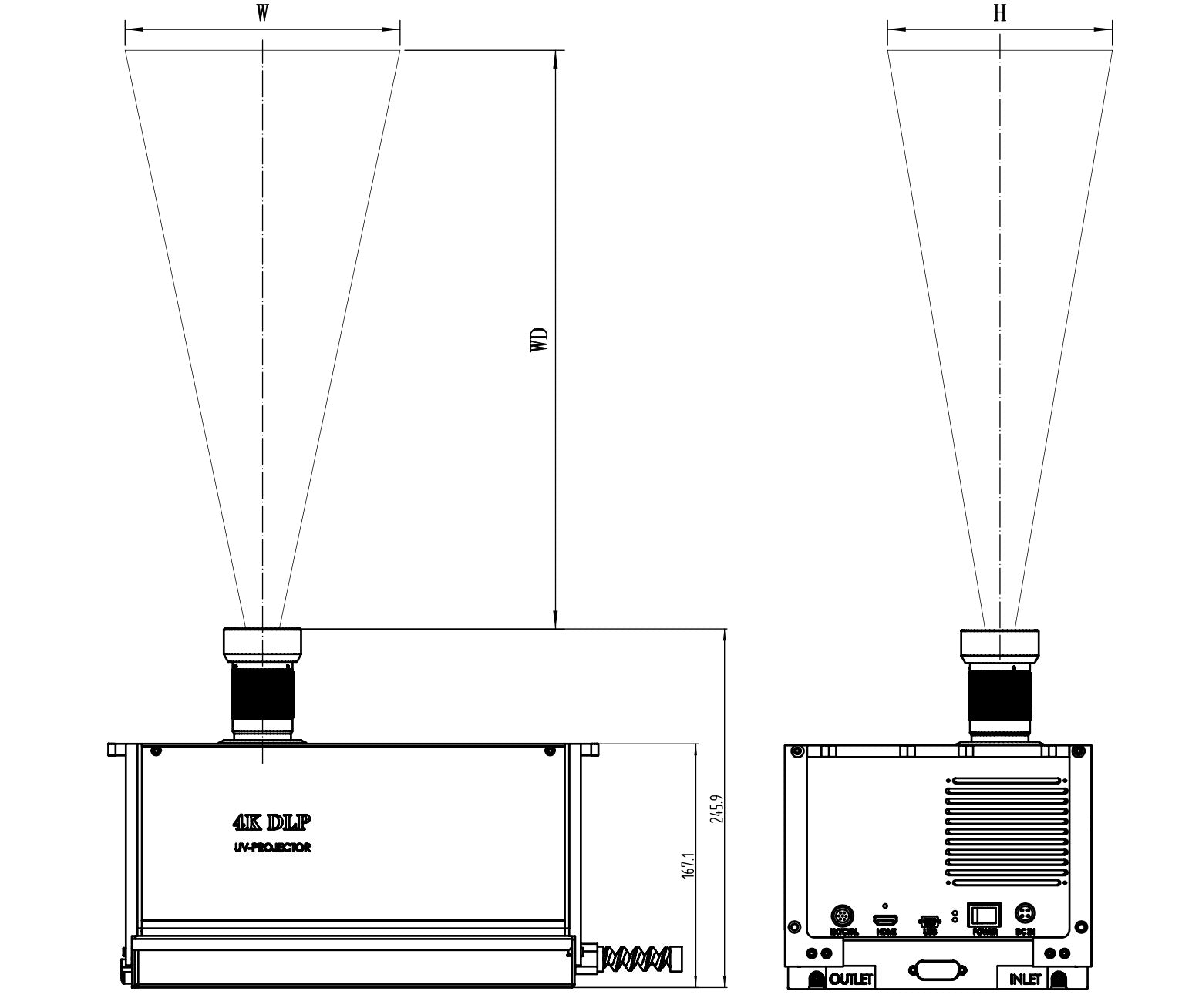

- Size:L336*W210*H246mm
- Software Download: https://www.si-cube.com/html/support-list.html
- Optional projector lenses
Optional Lens:
Usage Instructions:
The UV projector adopts a plug-and-play design, making it extremely convenient to use. Simply connect its HDMI port to the HDMI port of the input device to display the input video content. For advanced settings, such as adjusting the brightness of the LEDs and other parameters, you can connect its USB port to a computer and easily adjust them using the software provided by our company. The download address for the software is: https://www.si-cube.com/html/support-list.html.
SM12-LAS Laser 4K UV Projector for Industrial 3D Printing
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
What transportation method do you use?
All our products are shipped via international express services, such as DHL and FedEx,? completely free of charge
What is DLP 3D printing, and how does it work?
DLP 3D printing is a resin-based additive manufacturing technology that uses light to cure liquid photopolymer layer by layer. It involves projecting digital images onto a vat of liquid resin, where the exposed resin hardens to form each layer of the 3D object.
How does DLP 3D printing differ from other 3D printing technologies?
DLP 3D printing differs from other technologies such as FDM (Fused Deposition Modeling) in its use of light to cure resin, which allows for faster and more precise printing. It also typically offers higher resolution and smoother surface finishes.
Why are UV projectors critical in DLP 3D printing?
UV projectors are critical in DLP 3D printing because they emit the ultraviolet light that cures the resin. The quality, speed, and reliability of the printing process depend heavily on the performance of the UV projector.
What factors should be considered when selecting a UV projector for DLP 3D printing?
When selecting a UV projector, factors to consider include wavelength, resolution, LED lifespan, controller compatibility, and mechanical integration. The ideal projector should match the specific needs and requirements of the DLP 3D printing system.
What are the system requirements for DLP 3D printing?
System requirements for DLP 3D printing include a compatible UV projector, resin vat, build platform, and control system. Specific hardware specifications, such as resolution and interface compatibility, should also be considered.
How do I connect and configure a DLP 3D printing system?
Connecting and configuring a DLP 3D printing system typically involves connecting the UV projector to a PC via USB, launching the manufacturer's proprietary configuration software, and setting up the printer parameters, such as layer thickness and exposure time.
What is "pixelation" in DLP 3D printed models, and how can it be addressed?
Pixelation" refers to the appearance of tiny square or grid-like patterns on the surface of DLP 3D printed models. It can be addressed by increasing the resolution of the UV projector, adjusting the light curing parameters, or optimizing the print path.
What role do TIR prisms play in DLP 3D printing, and why are they important?
TIR (Total Internal Reflection) prisms play a critical role in DLP 3D printing by precisely redirecting light from the micro-mirror arrays to the projection optics. They maintain polarization and ensure that the light is evenly distributed across the resin vat, which is essential for high-quality printing.
