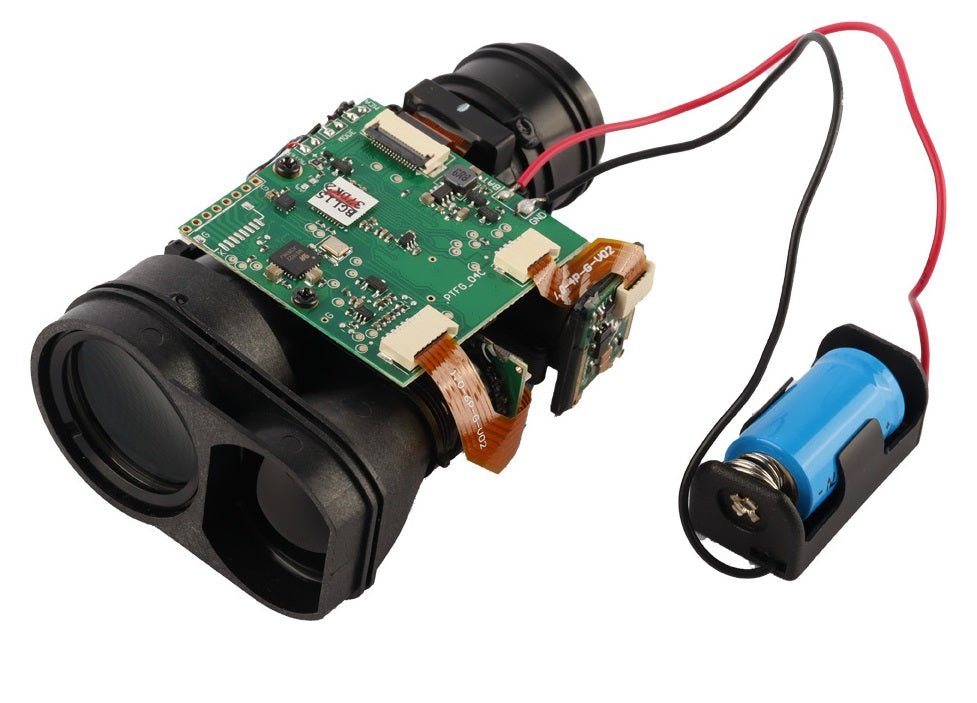

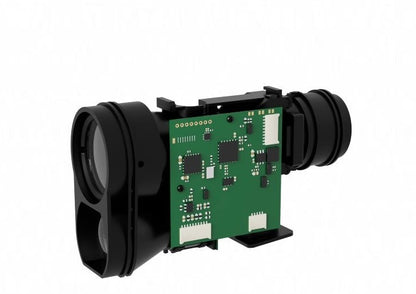

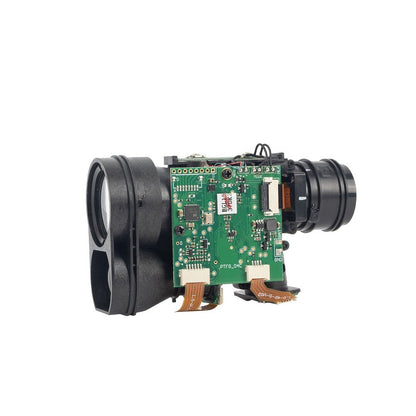

3KM Long Distance Pulsed Laser RangeFinder Module
A pulsed laser rangefinder module is a precision optoelectronic device that measures distances using pulsed laser signals and time-of-flight (ToF) principles. It emits short, high-intensity laser pulses and calculates the distance by measuring the time delay between the emitted pulse and its reflected return from a target. Key advantages include long detection ranges (up to several kilometers), resistance to ambient light interference, and suitability for dynamic or outdoor environments.
Key Features:
- High Speed: Rapid pulse emission (kHz frequencies) enables real-time distance tracking.
- Long Range: Capable of measuring from meters to kilometers, depending on laser power and wavelength (e.g., 905nm for cost efficiency, 1535nm for eye safety and atmospheric penetration).
- Robust Performance: Operates reliably in harsh conditions (e.g., temperature extremes, dust, rain).
Applications:
- Industrial Automation: Collision avoidance, robotic navigation.
- Surveying & Mapping: Terrain modeling, forestry monitoring.
- Autonomous Systems: Drones, self-driving vehicles.
- Defense/Security: Border surveillance, target tracking.
Specs:
Measurement Range: 5-3000m
Maximum Single Measurement Time: ~0.6s
Absolute Accuracy: ±1m (<200m), 0.5% (>200m)
Blind Zone: 5m
Resolution: 0.1m
Laser Specifications: 905nm, Class 1
Frequency: 1-3Hz
Operating Voltage: DC 3~5V（CR2 battery/LI battery versions customizable）
Communication Interface: UART（Default baud rate: 115200bps）
Serial Port Level: TTL 3.3V
Operating Temperature: 0~50℃
Storage Temperature: -30℃~60℃

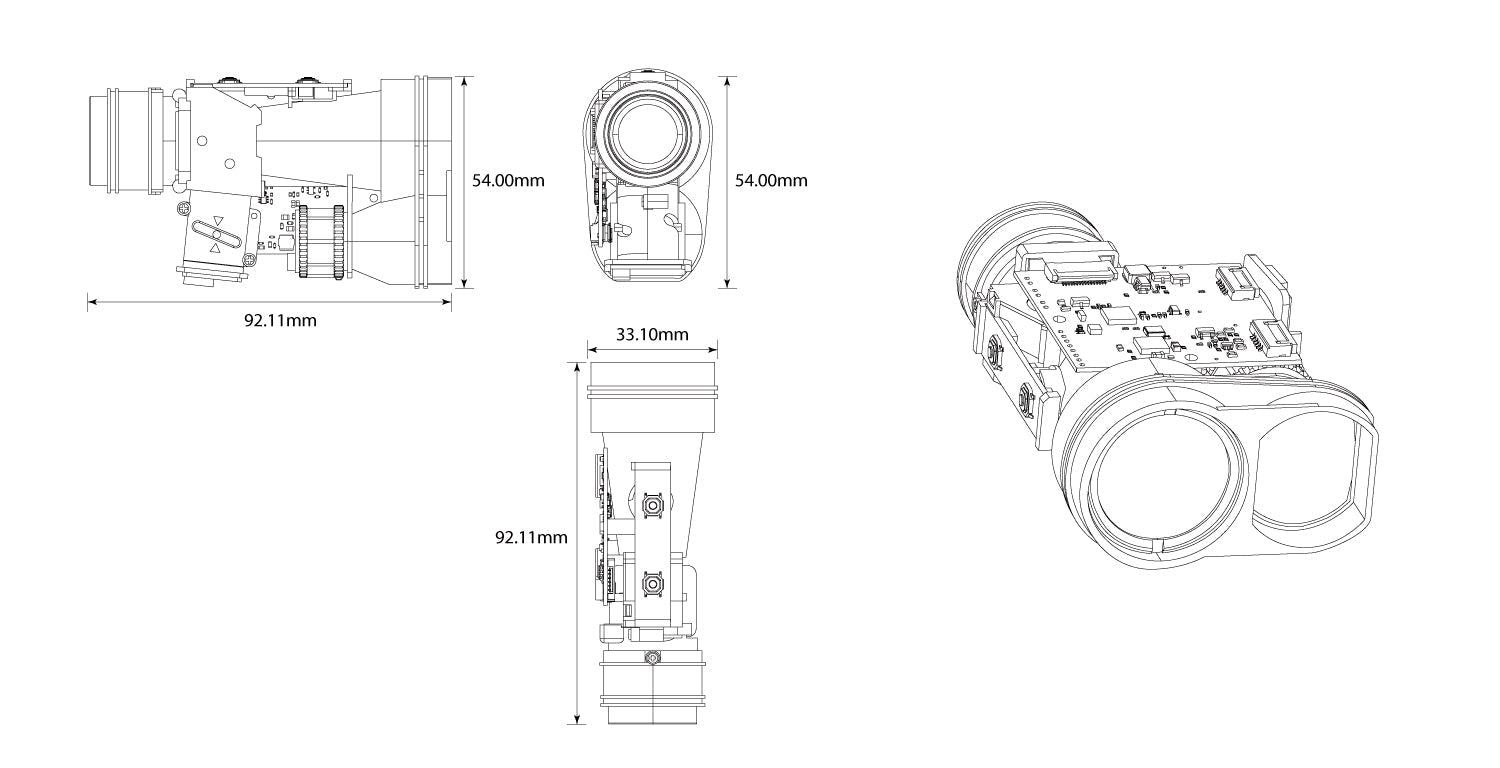

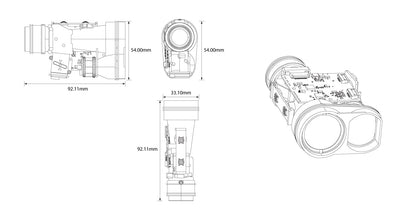

Dimensions: 92×54×33.1mm
Weight: 66g
Environmental Compliance: RoHS
3KM Long Distance Pulsed Laser RangeFinder Module
