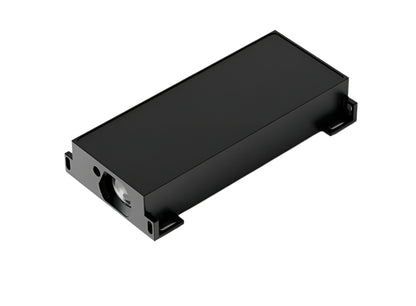

High-Accuracy High-Speed 2KHZ Laser Distance Sensor
Measurement Parameters
Measurement Distance: 0.2–25m (Reflectivity: 1.0, Ambient Light: 3kLux)
Distance Unit: mm
Measurement Time: 0.002–1 second (Reflectivity: 1.0, Ambient Light: 1kLux)
Accuracy: ±3mm (Reflectivity: 0.2–1.0, Ambient Light: 1kLux)
Distance Resolution: 1mm
Continuous Measurement Frequency: 2KHz (Reflectivity: 1.0, Ambient Light: 1kLux,
Reflectivity Range: 0.02–1.0
Optical Parameters
Laser Class: CLASS-II
Laser Power: <1mW
Laser Wavelength: λ=610–690nm
Beam Diameter:
<8mm@10m; <20mm@20m; <40mm@40m
Beam Dispersion:
<100mm@10m; <200mm@20m; <300mm@30m
Electrical Parameters
Power Supply: DC/5V/500mA (Battery Version)
Current:
Standby: <230mA@3.3V
Laser Activation: <270mA@3.3V
Continuous Measurement: <410mA@3.3V
Communication Parameters
Baud Rate: Fixed 460800bps
Signal Level: TTL (3.3V)

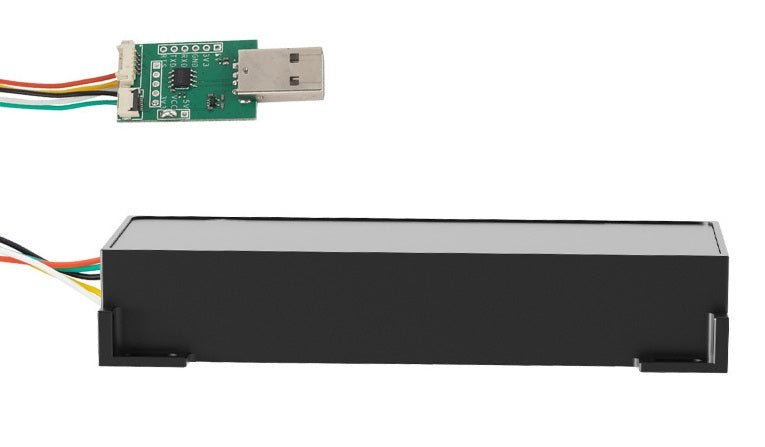

Interfaces: USART; RS232/RS485 (Requires External Level Converter)
Environmental Specifications
Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -25–60°C (-13–140°F)
Protection Rating: IP67
Annotations
Reflectivity and ambient light conditions significantly affect measurement performance.
High-speed measurement modes require optimal reflectivity and ambient light control.
