The Science of Laser Rangefinders: Measuring Distance with Light

Introduction

Laser rangefinders have revolutionized distance measurement across various fields, from construction and surveying to military applications and golfing. These devices use the fundamental properties of light to provide accurate distance readings with remarkable precision.

How Laser Rangefinders Work

At its core, a laser rangefinder operates on the time-of-flight principle:

Laser Pulse Emission: The device emits a focused laser beam toward the target.

Reflection: The laser light reflects off the target surface.

Reception: A photodetector in the rangefinder captures the reflected light.

Time Measurement: Precise electronics measure the time difference between emission and reception.

Distance Calculation: Using the known speed of light (299,792,458 m/s), the distance is calculated with the formula:
Distance = (Speed of Light × Time Delay) / 2

Types of Laser Rangefinding

Pulse-based Systems: Measure single round-trip time (common in long-range applications)

Phase-shift Systems: Compare phase differences between emitted and reflected waves (higher precision for short ranges)

Key Components

Laser diode: Typically uses 905nm wavelength (eye-safe)

Optical system: Lenses to focus the outgoing and incoming light

Timing circuit: Measures nanosecond-level differences

Microprocessor: Handles calculations and displays results

Applications

Surveying and construction

Military targeting

Sports (golf, archery)

Autonomous vehicles

Forestry and wildlife management

Advantages

Non-contact measurement

High accuracy (often within ±1mm)

Fast measurement speed

Works in various lighting conditions

Limitations

Requires reflective surfaces

Accuracy decreases with distance

Can be affected by atmospheric conditions

Future Developments

Emerging technologies like single-photon detection and frequency-modulated continuous-wave (FMCW) lasers promise even greater precision and range capabilities.

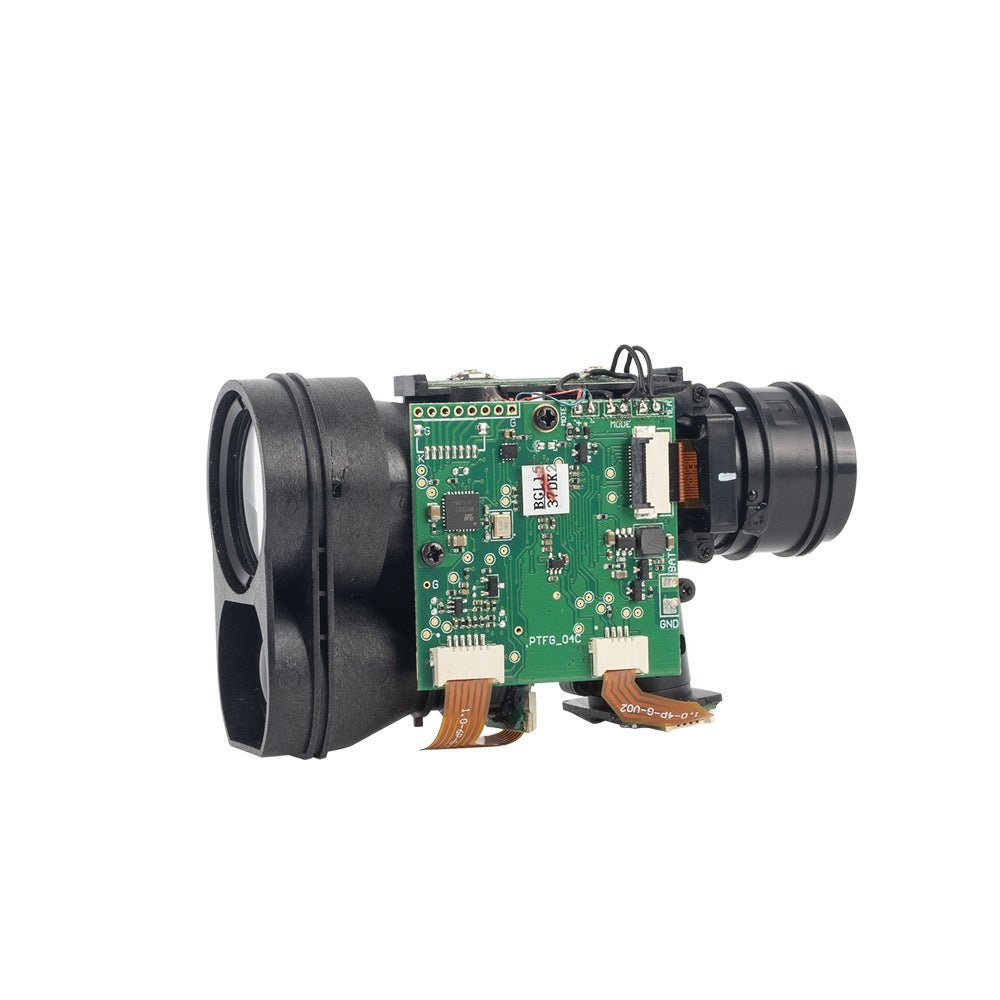

Buy Laser RangeFinder Modules Now at https://sicubeshop.com
